Hexagon Belts

Home Products Hexagon Belts

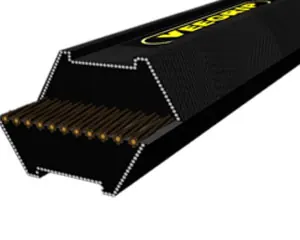

HEXAGONAL V-BELTS

We have emerged as one of the eminent Manufacturers, Exporters and Suppliers of Hexagonal V-Belts from Tamil Nadu, India. We manufacture Hexagonal V-Belts using quality approved basic material and advanced techniques. Moreover, we use the latest tools for testing Hexagonal V-Belts so as to ensure each and every possibility of defect from them. One can place retail as well as bulk orders for Hexagonal V-Belts with us.

CONSTRUCTION

  • Hexagonal V-belts also known as Double V-belts.
  • They can be in simple terms considered as two v- belts joined back to back.
  • The neutral axis containing the tension cord is exactly half way up the section.
  • The polyester tension cord placed at the center of this belt provides extreme flexibility & low stretch properties. It is because of this positioning of the cord the same is not subjected to any other forces as in the case of normal V- Belts.

APPLICATION

  • Hexagonal belts find applications in drives where several pulleys in the same plane are to be driven in the clockwise & anti-clockwise direction simultaneously.
  • Double V-Belts normally finds its application in agricultural machinery, textile machinery & rice mills.

SPECIFICATIONS

Section AA BB CC
Top width W mm 13 17 22
Thickness T mm 10 13 17
Incl Angle Q Deg. 40 40 40
Nominal Length L mm 2030~5080 2030~5080 2030~5080
L Inch 80″~200″ 80″~200″ 80″~200″
