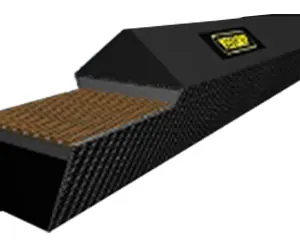

Cone Top Belts

CONE TOP BELTS

         Construction:

  • Strong wear resistant bias cut neoprene rubberized fabric.
  • High tenacity, low stretch, specially treated cable card.
  • Heat resistant card embedding cushion rubber compound.
  • Specially compounded high modules compression rubber.

         APPLICATION

  • Ceramic Industries.
  • Agriculture Industries.
  • Domestic Appliances.
Cone Top Belts

SPECIFICATIONS

Cone Top Belt Section Details
Section B(17x22) B(17x26) B(17x21) B(17x25)
Top Width W mm 17 17 17 22
Thickness T mm 22 26 21 25
Pattern Height mm 11 15 10 11
Manufacturing Range Min 85 66 42 73
Max 375 375 79 350
